Benco V91 (AE9310) Remove FRP Lock With TSM Tool — DM Guide
Operation Details:
- Brand: Benco V91
- Model: AE9310
- Android Version: Android 13
- CPU: SPD Tiger T606-64
- Security Patch: 2024-06-05
- Connection Mode: Diag Mode (SPD)
Quick Result
Recommended: keep an EFS/NV backup and verify IMEI after the job.
What is FRP Lock?
FRP (Factory Reset Protection) is a Google security feature designed to protect devices after a factory reset. If a phone is reset without removing the linked Google account, FRP will require that account’s credentials at setup. Technicians must verify ownership before performing an FRP bypass.
What is KG Lock?
KG Lock refers to carrier or vendor-level protections (sometimes vendor-named like Knox Guard) that restrict low-level operations such as flashing or unlocking. On SPD platforms it may appear as locked partitions or authorization failures — treat these with caution.
Why KG Lock Happens (Common Triggers)
- Unauthorized firmware or region mismatched flashes.
- Interrupted or failed partition writes during previous repairs.
- Corporate MDM or remote lock applied on the device.
- Security policies after remote wipe or abuse detection.
Why Use TSM Tool Pro?
- SPD Diag support — built-in routines for Tiger T606 series.
- Auto EFS/NV backup and restore to protect IMEI and calibration data.
- Regular updates keep pace with security patches and new devices.
- Vendor support & clear logs that help troubleshoot failures.
Step-by-Step Guide For You
DM — Mentor: “Listen — this is the clean SPD Diag method for Benco V91 (AE9310). Follow each step exactly.”
- Prep the PC: Install SPD USB VCOM drivers, disable driver signature enforcement if needed, and use a clean Windows 10/11 PC.
- Get TSM Tool Pro: Download the latest TSM package from www.tsmtoolpro.com. Extract to a folder and run as Administrator.
- Put Device in Diag Mode: For SPD Tiger devices use ADB command (if accessible) or testpoint to trigger diag; confirm with Device Manager showing ‘Qualcomm HS-USB Diagnostics’ or similar.

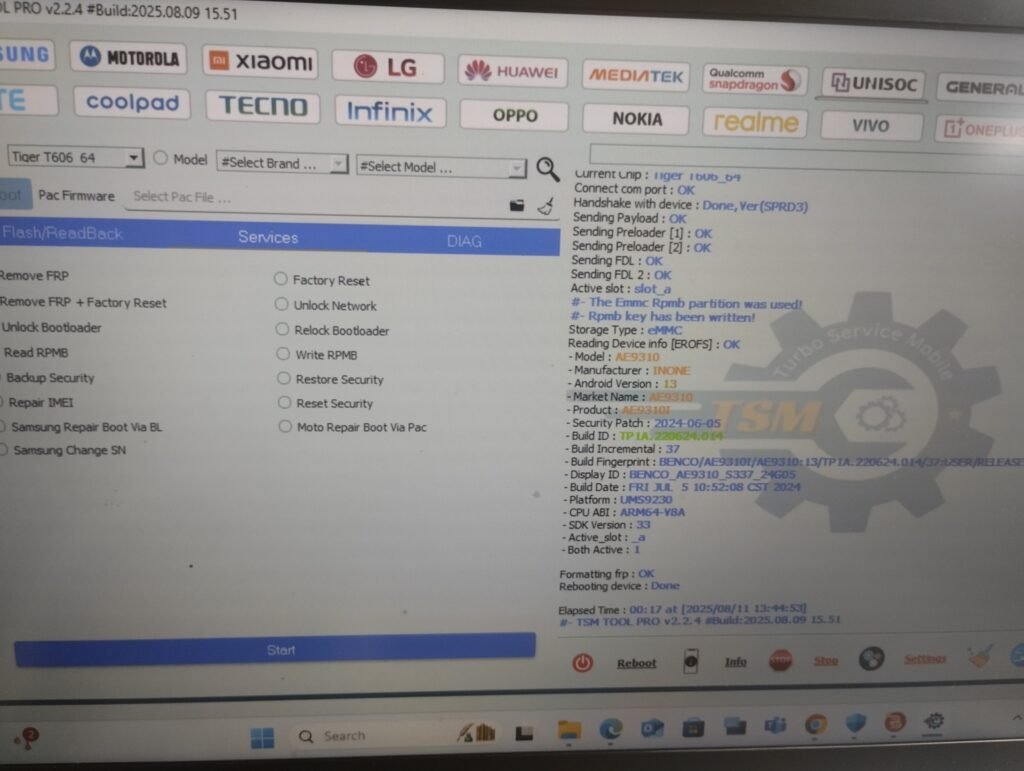

- TSM Settings: In TSM, select ‘SPD/Unisoc’ → choose model AE9310 or generic SPD Tiger → enable ‘Auto EFS Backup’ and ‘Bypass FRP (Diag)’.
- Run Bypass: Click ‘Start’. Monitor logs for loader/flashing steps. Allow the tool to flash minimal payloads it requests.

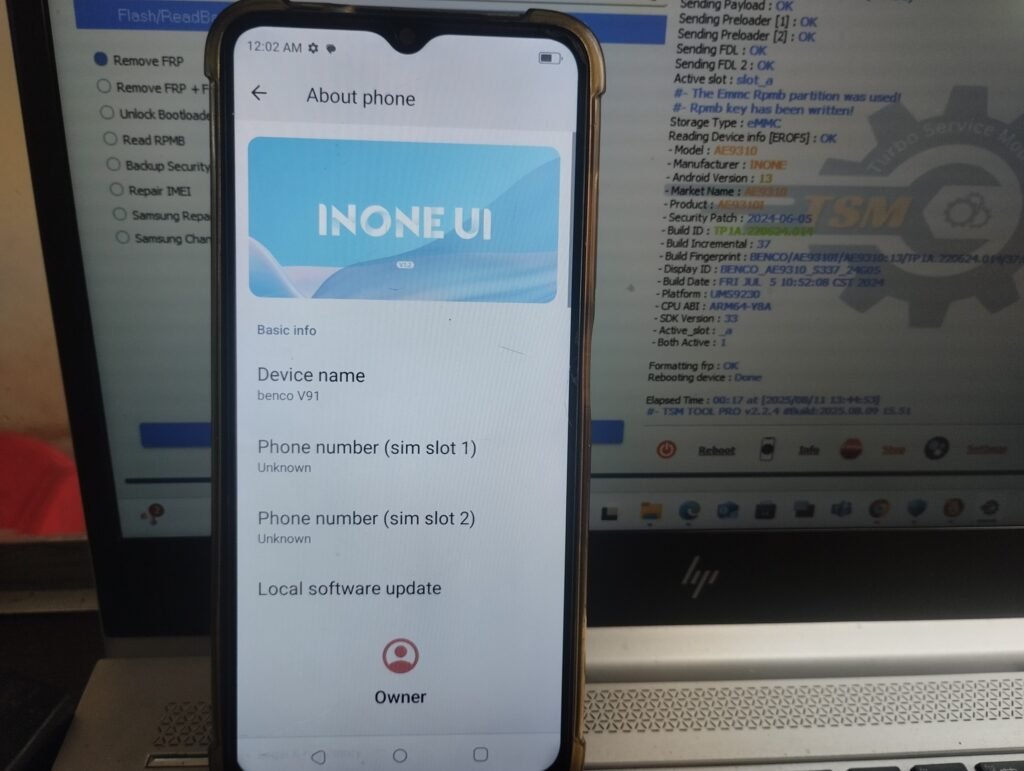

- Verify: After ‘Success’ message, reboot device. Go through setup and check Settings → About phone, verify IMEI and connectivity.
- Post Repair: Restore any calibration files if needed, run a quick hardware test (Wi-Fi, camera, sensors) before handover.
Pro Tip: If Diag mode isn’t recognized, re-check drivers and try another USB cable/port. Keep an alternate PC ready for stubborn cases.
7. Safety Tips & Precautions
- Always create a full EFS/NV backup before any write operations.
- Use a reliable USB cable and avoid disconnecting during flashing.
- Verify device ownership — obtain receipt or ID before bypassing FRP.
- Keep a log: date, IMEI, customer name, technician initials.
- Avoid long continuous flashing sessions to prevent overheating.
- Be aware of local laws — do not assist with stolen devices or illegal activity.
Real Technician Example
Case: Benco V91 (AE9310), Android 13, Security Patch 2024-06-05
Outcome: FRP removed in ~20 minutes using TSM Tool Pro; charged $25; monthly income from such services increased by ~$380.
Sanaullah emphasized pre-backup and using official SPD VCOM drivers — avoided IMEI issues by restoring EFS immediately after bypass.
Summary Table
| Item | Detail | Notes |
|---|---|---|
| Device | Benco V91 (AE9310) | SPD Tiger T606-64, Android 13 |
| Method | Diag Mode (SPD) | Driver + Testpoint/ADB as needed |
| Tool | TSM Tool Pro | tsmtoolpro.com |
| Time (typical) | 12–30 minutes | Depends on backups & diagnostics |
| TSM Tool Price (Yearly) | $18 + updates | Subscription — pro features vary |
How To Bypass FRP Lock With TSM Tool? (Simple)
TSM Tool automates the SPD Diag bypass: connect device in Diag → Auto Detect SPD → choose model/patch → execute bypass which flashes minimal payload and restores EFS if needed. Follow logs and always backup first.
Extra Bonus Info
- Keep local copies of loaders and small patches to avoid remote download failures in low-connectivity areas.
- Business tip: offer a post-service test pack (Wi-Fi, IMEI, sensors) as a $5 add-on.
- Security: anonymize customer data when storing logs to respect privacy laws.
Credit Score Optimization Tips (extra business growth)
- Keep service records and invoices organized to build trust with lenders when expanding your repair shop.
- Consistent monthly income (from service packages) improves small-business credit evaluations.
FAQs
Q1: Is bypassing FRP with TSM Tool legal?
Yes, when you have proof of ownership or explicit permission. Do not use these methods on stolen or unverified devices.
Q2: Will FRP removal affect IMEI or Wi-Fi?
If you keep EFS/NV intact or restore it from your backup, IMEI and Wi-Fi calibration remain safe. Always backup EFS first.
Q3: Diag mode not recognized — what now?
Reinstall SPD VCOM drivers, try another USB cable/port, reboot PC, or use a different machine. Testpoint method often resolves recognition issues.
Q4: How long does the process take?
Typically 12–30 minutes depending on backup size and whether extra calibration files are required.
Q5: Is TSM Tool Pro worth the yearly subscription?
For active technicians who handle diverse SPD devices, paid tools like TSM Tool Pro ($18/yr listed) offer safety features, updates, and support that reduce repair risk — usually worth the investment.
Conclusion
Removing FRP from Benco V91 (AE9310) is straightforward with the correct SPD Diag setup and a quality tool like TSM Tool Pro. Prioritize EFS backups, confirm ownership, and document every repair to protect yourself legally and professionally.
Disclaimer
This guide is for educational and legitimate repair use only. The author is not responsible for misuse. Always verify ownership and comply with local laws. Performing FRP bypass on devices you do not own can be illegal.
