Complete guide solution method to remove FRP lock on Samsung Galaxy S8+ (SM-G955U) BIT8 using TSM Tool and test point method. This tested solution works for users locked out after factory reset.
Required Tools & Materials
[IMAGE: Tools layout showing all required items]
- TSM Tool (Latest version)
- USB data cable
- Test point tools
- Copper wire
- Tweezers
- Multimeter
- Samsung USB drivers
- Windows PC

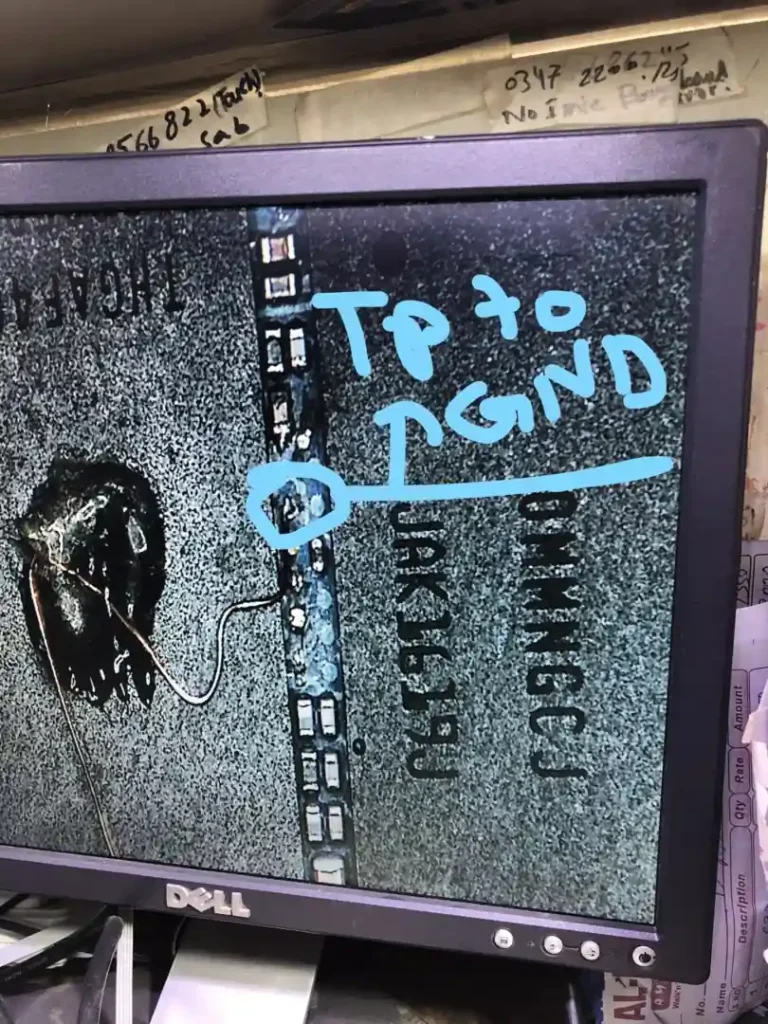

Test Point Location
The test point is located:
- Near the battery connector
- Two small pads marked as TP1 and TP2
- Use multimeter to identify correct points
Step-by-Step FRP Removal Process
1. Preparation Phase
- Download TSM Tool
- Power off the device

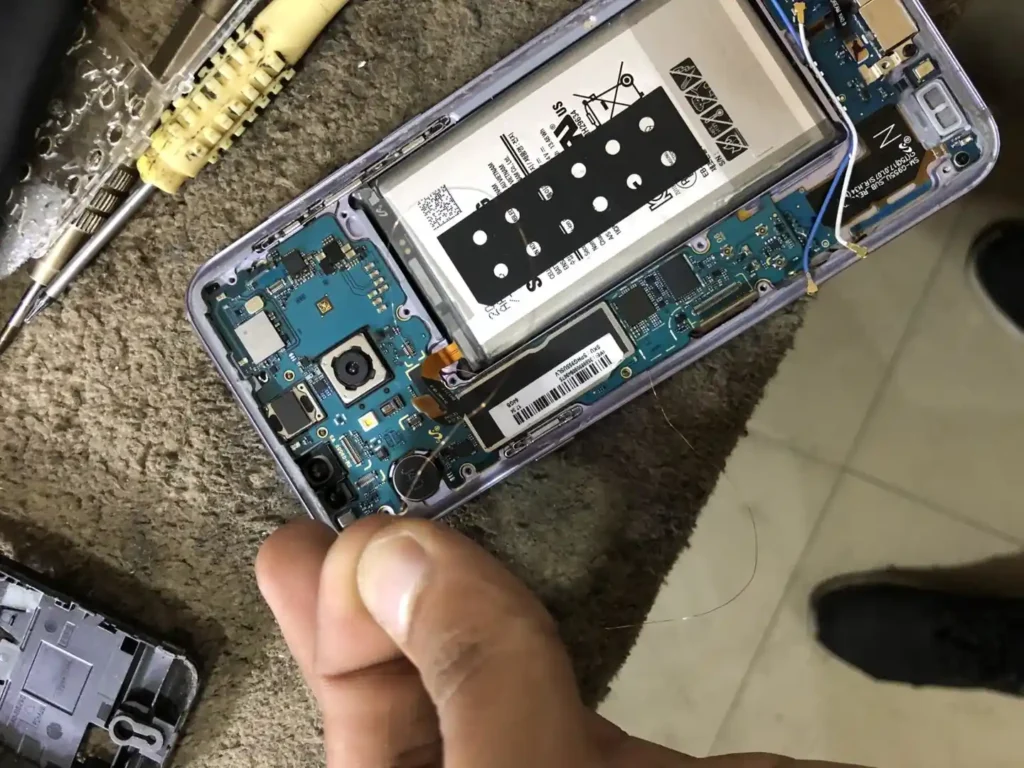

- Remove back cover carefully

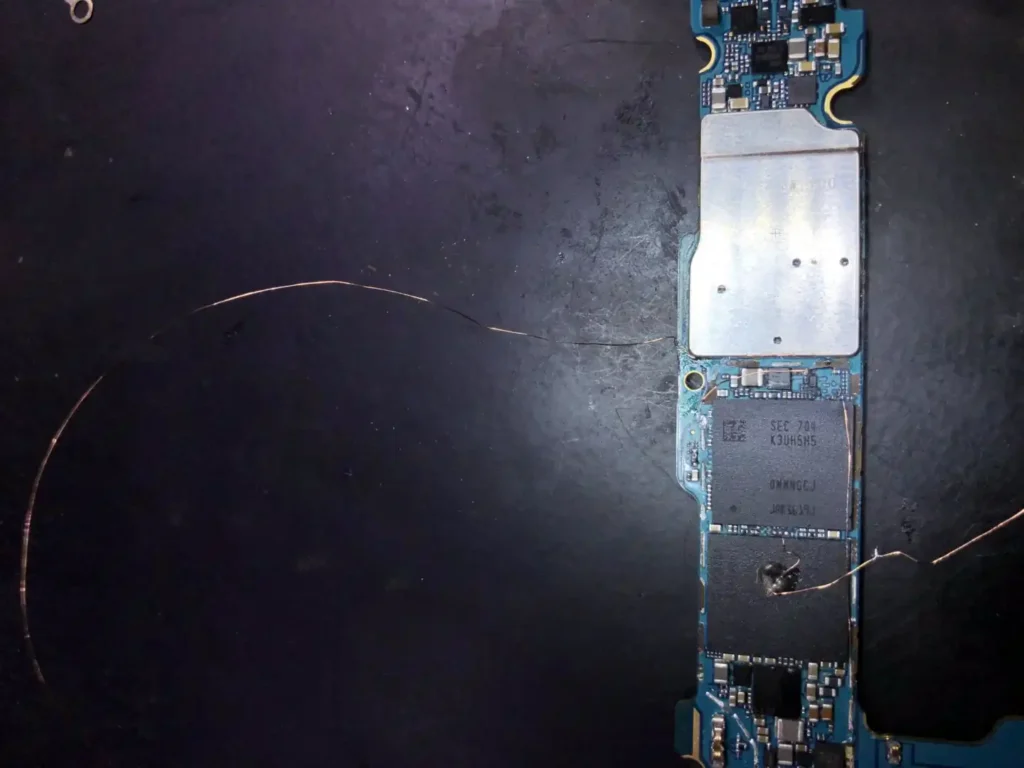

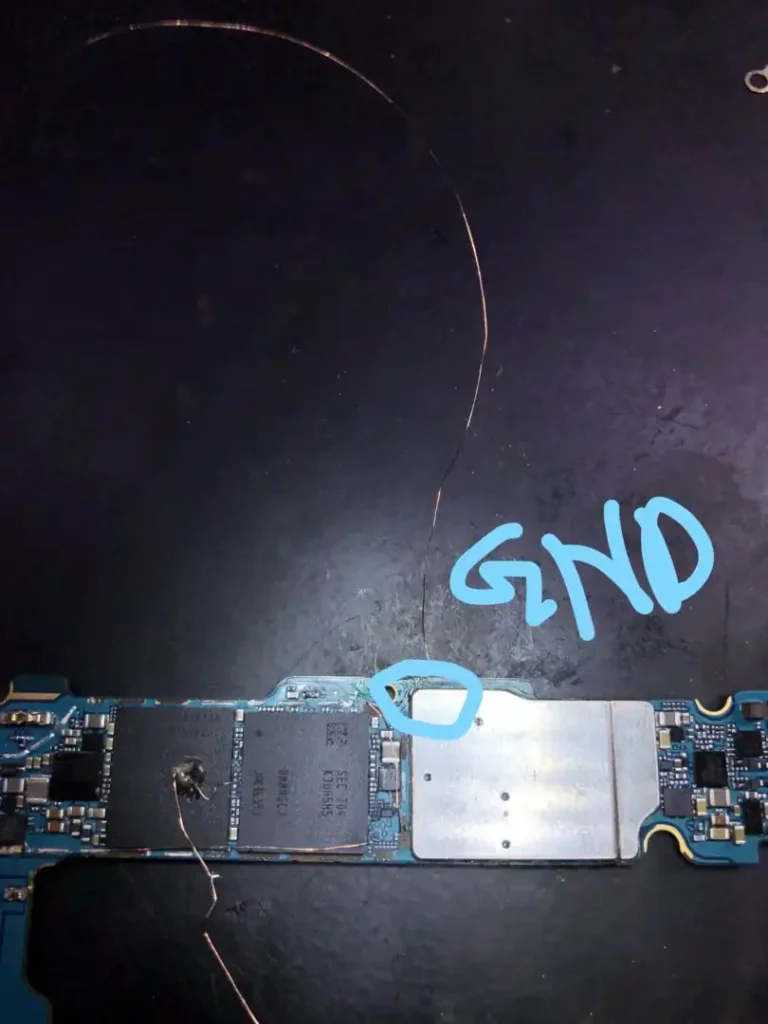

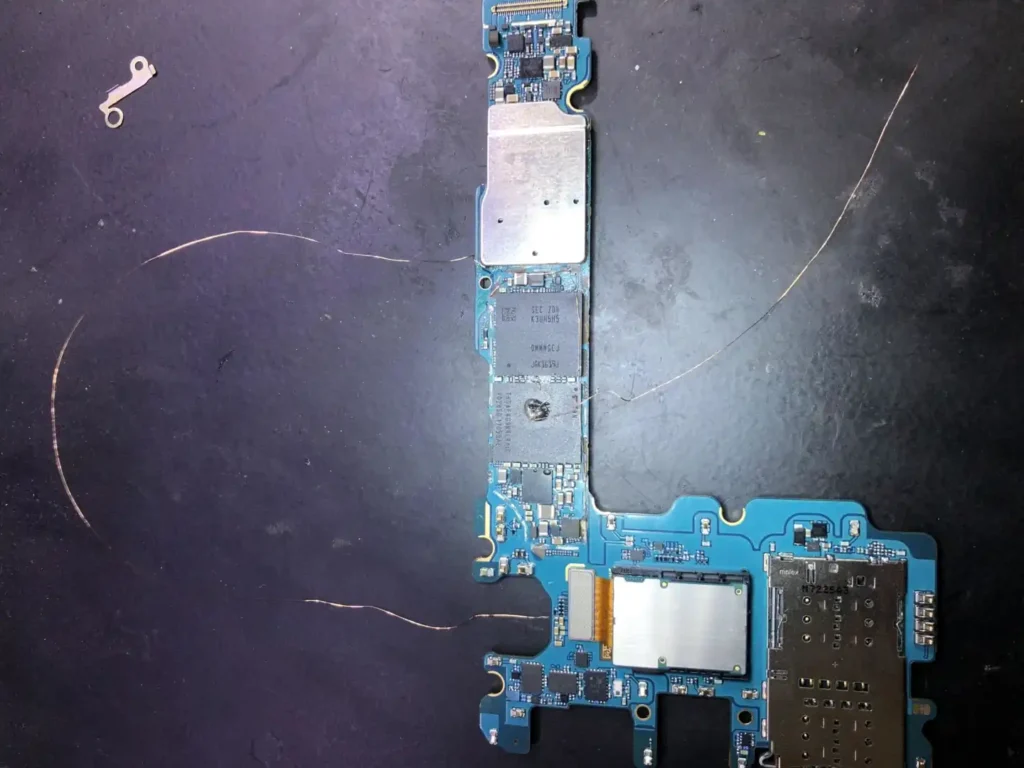

2. Test Point Connection
- Locate TP1 and TP2 points
- Connect copper wire to TP1
- Ground the other end to TP2
- Hold connection firmly
3. TSM Tool Process
- Open TSM Tool
- Select model SM-G955U
- Choose BIT8 option
- Click “Remove FRP”
- Wait for completion
4. Verification Steps
- Remove test point connection
- Reassemble phone
- Boot device normally
- Verify FRP removal
Important Notes
- Use correct test points
- Maintain steady connection
- Don’t disconnect during process
- Backup data if possible
Safety Precautions
- Work in static-free environment
- Use proper tools
- Follow exact test point locations
- Avoid damaging components
Downloads Section
- TSM Tool latest version
- Required drivers
- Test point diagram
- Support files
